laser templating

The highest-resolution laser projections in the industry—casting farther and sharper than anyone else.

New firmware · ScanBoost
Next-level projection clarity, with galvo refresh boosted up to 2.5×.
See What it Does

use Your Design Data to Guide the Fastest, Most Accurate Build

Imports bills of materials (BOM) & bills of process (BOP)
Delivers 3d projections
Enables fastest builds

digital CAD IN THE REAL WORLD

Pioneered by Aligned Vision, our software imports CAD/CAM data and generates laser patterns on large, complex surfaces.

3D laser templating guides tasks

  • Layup of composite materials.
  • Positioning of drill holes.
  • Placement of paint masking materials.
  • Unloading of cutters.
  • Assembly operations.
  • Component placement (e.g., for welding).

OUR PROCESS IMPROVEMENT

  • Automatic target registration with AutoAlign.
  • Lowest laser flicker in the industry.
  • Multitask projects with up to four jobs per projector, keeping multiple teams working.
  • The safest, brightest laser. The first CDRH Class II / IEC Class 2 laser in the industry.
  • Industry-leading reliability keeps operators working instead of fixing projectors.

LaserGuide ²

LaserGuide² projects patterns of laser light with incredible 3-dimensional accuracy to specific locations on tools, WIPs and other surfaces on the manufacturing floor.

This functionality directly links CAD/CAM data and manufacturing, bringing digital information into the real world. Operators see where to perform a manufacturing step without consulting a computer screen or paper instructions.

View more

microLASERGUIDE

  • Only 8 lb / 8½′ x 4′ x 5½′ housing
  • Greatest accuracy in an ultra-portable package
  • Easy handling, mounting and relocating by a single operator
View more

Software

Our software and laser projection products work together to further automate and improve your process.

software

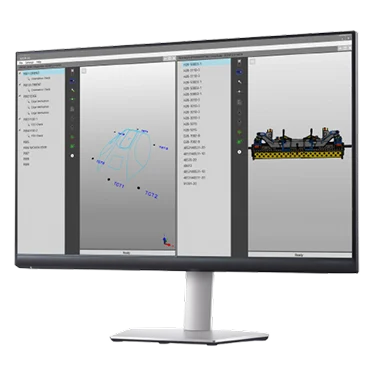

Align 4.0

  • Full control of each job both at the controller and on mobile devices.
  • Rapid registration with AutoAlign feature automatically registers all projectors.
  • Industry 4.0 connectivity including plug & play PLC.
  • 8 Projectors supported per system.
  • 8 Simultaneous active data jobs.
  • SystemAlign automatically registers subsequent projectors on multi-projector setups once the first projector is registered.
View more
ScanBoost

Next-Level Projection Clarity

Aligned Vision’s latest projector enhancement, ScanBoost, reduces visible flicker and delivers sharper, more stable laser lines for exceptional clarity in high-speed, precision-driven environments.
By boosting galvo refresh rates up to 2.5×, ScanBoost accelerates projection cycles and helps operators work more efficiently and comfortably.

Reduced flicker

  • Smoother, more consistent lines minimize visual fatigue.

Up to 2.5× faster scanning

  • Accelerated projection keeps builds moving.

Seamless compatibility

  • Ready for LaserGuide² and LaserVision-AI systems with proper firmware and calibration.
Now standard on new systems. Existing LaserGuide² and LaserVision systems may qualify.
Talk to a specialist to confirm your system and get the upgrade.
Request a ScanBoost upgrade
software

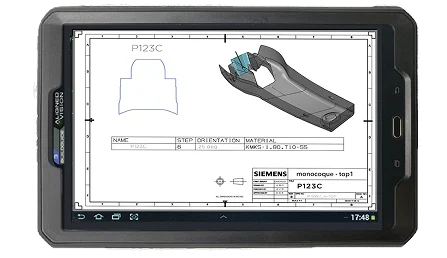

BuildGuide

Included with Align 4.0

  • Ensure parts are built according to the as-designed build process.
  • Operator guidance for every step in the job sequence.
  • Display of critical, complicated, obscured information.
  • Access to the build sequence at the work surface.
  • Electronic operator buyoff replaces traveler stamp.
  • Debulk management on device ensures correct sequence, vacuum pressure and duration.
View more
software

Buildguide Report

Advantages

  • Traceability for entire build process.
  • Build details automatically populated.
  • Build times monitored.
  • Find potential bottlenecks in the build process.
  • Operators’ comments and feedback automatically added.
software

SDK

Software development kit

  • Enables seamless integration of LaserGuide² and LaserVision-AI with your machine and UI.
  • Increases machine efficiency by significantly reducing inspection time.
  • Optical probing.
  • Fabrication documentation.
  • Vision capture and analysis support.

Sdk includes

  • DLL (32 or 64 bit .NET Framework)
  • API
  • Manual
  • Sample code
  • Unlimited support
View more
software

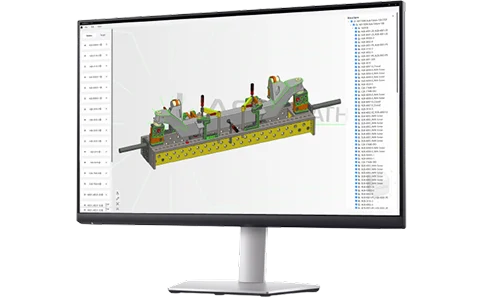

LaserPath

  • Projection data creation software.
  • Accepts STEP file input.
  • User-friendly UI.
  • Step-by-step projection creation.
  • Flexible model selection.
  • Custom text projection.
View more
software

Remote App

Android Remote Application

  • All layup control from tool.
  • No walking back and forth to computer.
  • Lowest cycle time.
  • All operator displays and functions.
  • System status and messages.
  • Assembly shape & full sequence list.
  • Up to 8 remotes per controller.
