The LASERGUIDE system is foremost in the industry in terms of range, accuracy, ease of use, and flexibility. Using LASERGUIDE, our Fabrication Management system requires fewer projectors, controllers, and operator setup activities than any other laser system. LASERGUIDE combines the most advanced, durable hardware with unparalleled software capabilities.
Incorporating the latest advancements in lasers, galvanometers, optics, temperature stabilization, and computing capabilities, LASERGUIDE laser projectors have never created a manufacturing delay because of an inability to meet the requirements set out by an aerospace OEM. Our projector specifications state what our projectors actually achieve – the first time and every time – including projection range and precision requirements.
Our hardware has also demonstrated superior durability and reliability: We are still servicing projectors we built in the 1990s! LASERGUIDE has earned its reputation for the best accuracy and reliability in the industry.

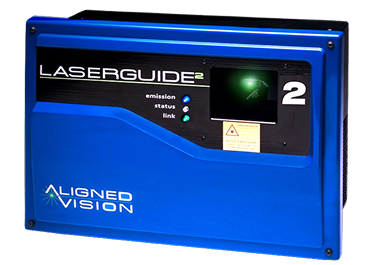

|Size:||13” x 10” x 7”/ 33 x 25 x 18 cm|
|Weight:||18 lb/ 8 kg|
|Mounting Yoke:||2 lb/ 1 kg|
|Projection Angle:||60° (+/- 30°)|
|Projection Range:||Standard: 3' – 20'/ 1m – 6m
Long Throw (LT) Option: 3' – 40'/ 1m – 12m
Long Throw Extended (LTE) Option: 3' – 50'/ 1m – 15m
|Accuracy:||0.015”/0.38mm (Meets Boeing D6-55902 requirements)|
|Beam Color:||Green (532nm)
|Laser Line Width:||0.020”-0.075”/0.5mm-2mm|
|Laser Class:||CDRH Class II/IEC Class 2|
|Power Requirements:||110-240 VAC 50/60Hz|
As we’ve advanced our software capabilities over the years, we’ve had one goal in mind: To streamline laser templating operations so that our customers enjoy the most cost- and time-efficient fabrication system available.
A single seat of LASERGUIDE software provides functions that would require many seats and setups of software from other laser suppliers. LASERGUIDE software supports unique capabilities that reduce the time, skill and effort required to accurately and efficiently manufacture parts.
- Works with all LASERGUIDE and MicroLASERGUIDE projectors
- Backward-compatible with older generation projectors
- Reads any 3D point data. Seamlessly imports design files
- Automatically converts laser projection files from other systems to LASERGUIDE projection files
- Custom modifications and configurations provided when desired
Our software enables one projector to do the job of many. More than that, it enables one controller to support multiple LASERGUIDE projectors performing multiple jobs at the same time. Each individual projector displays multiple simultaneous jobs. And each job is controlled by an individual remote control.
|Data Compatibility:||Fibersim, TruLaser, Verisurf, metrology data and other CAD & NC data|
|Controller:||Industrial computer with monitor, keyboard, and a mouse, uninterruptable power supplies, Wireless Access Point, Ethernet switch|
|Operating System:||Windows XP, Windows 2000, Windows Vista, Windows 7, Windows 10|
|Support:||3 levels of operator privileges, event logging for statistical analysis|
|Simultaneous Active Data Files:||8|
|Projectors Supported:||20/system, any configuration of LASERGUIDE projectors and MicroLASERGUIDE projectors|
Barcode Readers (2)
