Align 4.0

Align 4.0 is the brain behind our devices that puts speed and efficiency in your operator’s hands.

SYSTEM UPGRADE · SCANBOOST
Next-level projection clarity, with galvo refresh boosted up to 2.5×.
See What it Does

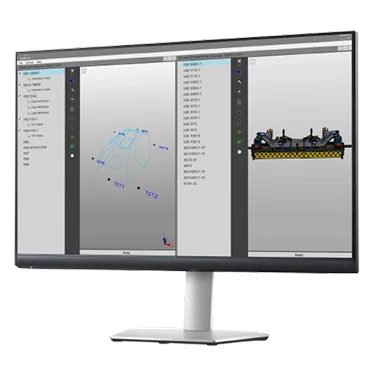

Align 4.0 is the software system that speeds up operator tasks and enables Industry 4.0 connectivity. It is what drives LaserGuide²,LaserVision-AI, as well as the remote control devices. The CAD-like UI provides operators with immediate access to crucial information.

Capabilities

  • Full control of each job both at the controller and on mobile devices.
  • Rapid registration with AutoAlign feature automatically registers all projectors.
  • Industry 4.0 connectivity including plug & play PLC.
  • 8 projectors supported per system.
  • 8 simultaneous active data jobs.
  • SystemAlign automatically registers subsequent projectors on multi-projector setups once the first projector is registered.

ALIGN 4.0 boosts productivity, increases throughput and keeps everything seamlessly connected.

ALIGN-4.0

Advantages

Dynamic registration

  • AutoAlign establishes and maintains alignment.
  • SystemAlign automatically registers projectors.
  • QuickCheck verifies alignment even if some targets become blocked.
  • VariView sets up and saves multiple tool positions for seamless transitions.
  • ShowLast saves and projects previous target locations, speeding tool placement and registration.
ALIGN-4.0

Advantages

Accelerate value-added tasks

  • Intuitive user interface (UI) includes 3D CAD images & 3D ply view.
  • Controller and smart mobile devices provide full, independent control of each job.
  • Touchscreen remote controls maximize operator efficiency at the tool.
  • SmartView control of display screen matches operator`s view of the tool.
  • UI displays non-projected manufacturing operations, such as vacuum debulks.

Supports Industry 4.0

  • LaserVision-AI automatic inspection functions are fully supported.
  • Connectivity through master csv, multiple file formats, and integration both upstream and downstream of projection and inspection operations.
  • Plug-and-play PLC interface connects to automation systems.
ScanBoost

Next-Level Projection Clarity

Aligned Vision’s latest projector enhancement, ScanBoost, reduces visible flicker and delivers sharper, more stable laser lines for exceptional clarity in high-speed, precision-driven environments.
By boosting galvo refresh rates up to 2.5×, ScanBoost accelerates projection cycles and helps operators work more efficiently and comfortably.

Reduced flicker

  • Smoother, more consistent lines minimize visual fatigue.

Up to 2.5× faster scanning

  • Accelerated projection keeps builds moving.

Seamless compatibility

  • Ready for LaserGuide² and LaserVision-AI systems with proper firmware and calibration.
Now standard on new systems. Existing LaserGuide² and LaserVision systems may qualify.
Talk to a specialist to confirm your system and get the upgrade.
Request a ScanBoost upgrade
TECH SHEET PDF
Download Align 4.0 Tech Sheet

more functionality

  • Independent control of multiple jobs from one computer.
  • A single seat of our software does the same as multiple seats and setups of other vendors’ software.
  • Minimized equipment reduces cleanroom footprint and maintenance costs.
  • Foreign language interface.
